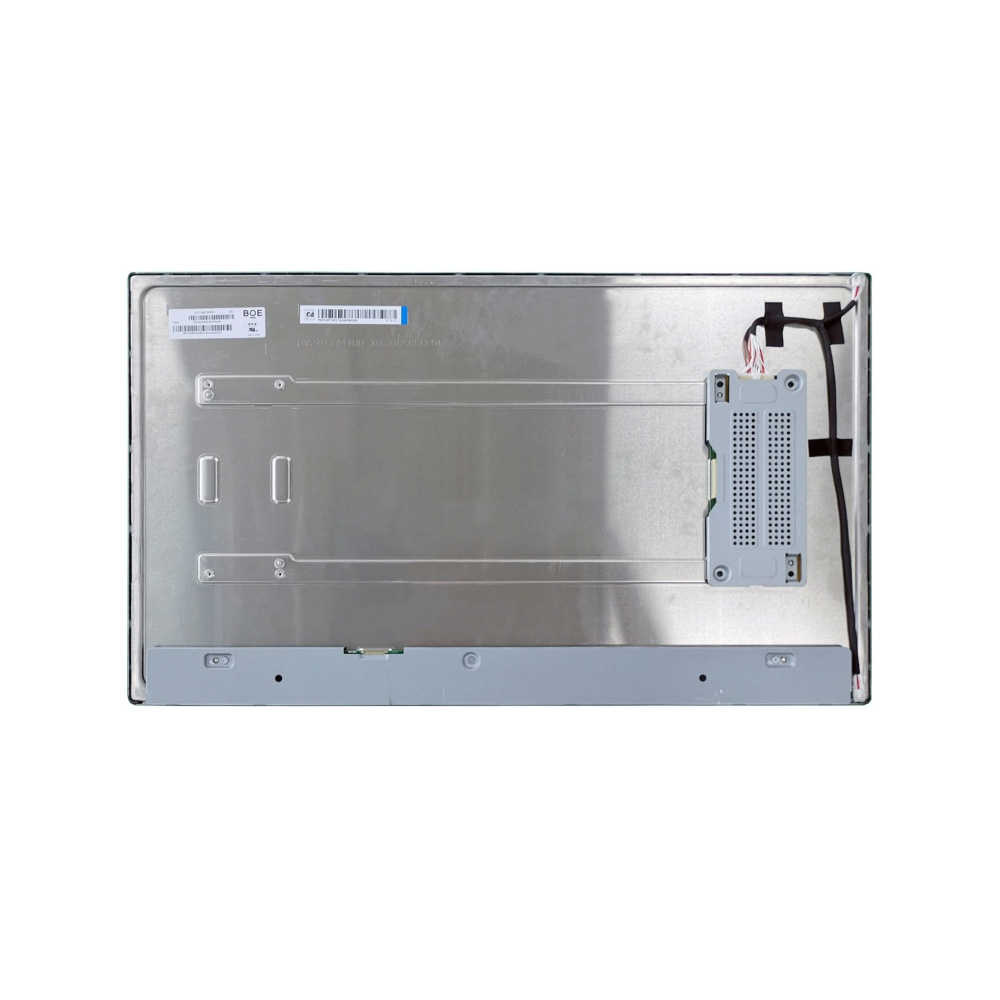

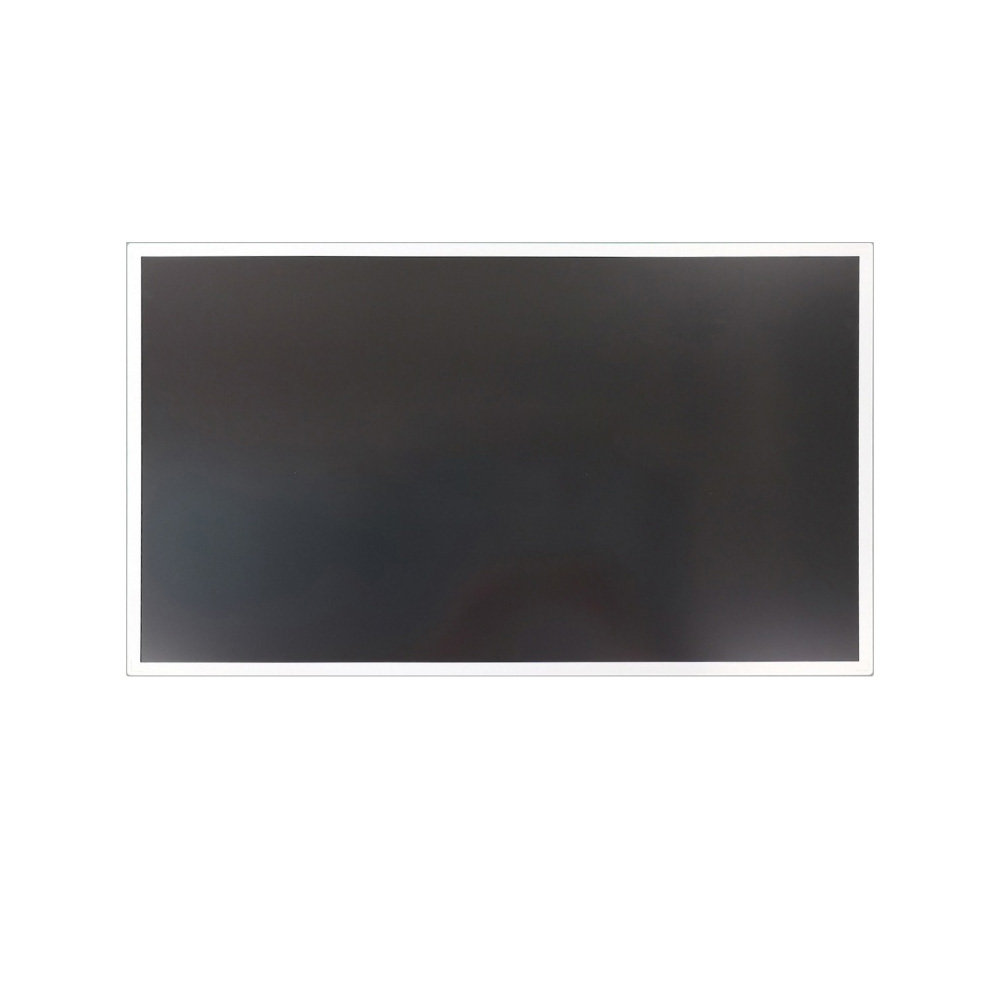

27 inch 3840x2160 30PIN EDP 1000nits LCD Module Back to list

Description:

►Model:DV270QUM-R10
►Size : 27 inch
►Resolution:3840x2160 dots
►Active Area:596.736(H)×335.664(V)mm
►Module size:623.34(W)×362.3(H)×18.7(D)mm
►Viewing Angle: 89/89/89/89
►Interface:30PIN EDP
►Brightness (cd/m²):1000
►Operating Temperature:-20~+60℃
The 27 inch 1920×1080 LCD module offers 1000 cd/m² brightness and –30~+80°C wide temperature resilience, making it perfect for industrial equipment and outdoor advertising machines. Designed and supplied by Duobond Display, your trusted partner for custom LCD display solutions.

Inquire

The Reliable Performer: 27-Inch Wide Temperature, High Brightness LCD Module

Engineered for Industrial and Outdoor Applications

The modern industrial environment and outdoor advertising markets demand display solutions that can withstand harsh conditions while delivering uncompromised visual performance. The 27 inch 3840x2160 LCD module is designed to meet these challenges, offering a combination of wide temperature tolerance and high brightness that makes it ideal for industrial equipment, control systems, and outdoor advertising machines.

With its robust engineering, this module provides crystal-clear Full HD resolution and brightness levels that ensure legibility even under direct sunlight. Built to last, it combines mechanical precision with optical innovation, making it a reliable display solution for demanding environments.

Product Specifications

Parameter	Specification	Unit
Model Name	DBT270FHN-NW0	–
Screen Size (Diagonal)	27	inches
Resolution	3840 (H) × 2160 (V), Full HD	pixels
Display Area (Active)	597.6 (H) × 336.15 (V)	mm
Product Dimensions	626.6 (H) × 365.35 (V) × 11.5 (D, Typ.)	mm
Brightness (Typ.)	1000	cd/m²
Display Colors	16.7M (8-bit True)	colors
Display Mode	ADS, Normally Black	–
Contrast Ratio (Typ.)	1000:1	–
Response Time (Typ.)	14 ms (Rising + Falling)	ms
Viewing Angle	89/89/89/89 (CR ≥ 10)	degrees
Surface Treatment	Anti-Glare, Haze 1%, Hardness 3H	–
Operating Temperature	–30 ~ +80	°C
Storage Temperature	–30 ~ +80	°C
Weight	3.75	kg

Key Features

1. High Brightness for Outdoor Readability

With a typical luminance of 1000 cd/m², this module ensures exceptional readability in direct sunlight, making it ideal for outdoor advertising machines, kiosks, and digital signage. Its anti-glare surface treatment enhances visibility by reducing reflections and improving contrast.

2. Wide Temperature Resilience

Engineered to perform reliably across a –30°C to +80°C operating range, this wide temperature LCD module maintains stability in extreme conditions. Whether deployed in scorching summers or freezing winters, it guarantees uninterrupted performance.

3. Superior Visual Quality

Featuring ADS technology and a contrast ratio of 1000:1, the module delivers wide viewing angles (89° from all directions) with consistent color accuracy. Full HD resolution ensures sharp images, making it suitable for detailed industrial graphics and vibrant advertising content.

4. Reliable and Durable

With a response time of 14 ms, this panel handles fast-moving content smoothly. Built with industrial-grade durability, it supports 24/7 operation while maintaining optical stability and electrical reliability.

Application Scenarios

Outdoor Advertising Machines: Perfect for kiosks, bus shelters, and digital billboards requiring high brightness and wide temperature tolerance.
Industrial Equipment: A reliable choice for control panels, HMIs, and factory automation consoles where durability and clarity are critical.
Transportation Systems: Suitable for displays in airports, train stations, and vehicles, where environmental conditions vary significantly.
Energy & Utilities: Designed for monitoring systems in power plants and oil fields that demand rugged displays for harsh environments.

About Duobond Display

Duobond Display is a trusted LCD module supplier, specializing in industrial-grade and commercial display solutions. With years of expertise and a commitment to excellence, we provide custom LCD display products that combine high brightness, wide temperature endurance, and long-term reliability.

Our reputation is built on quality assurance, strict compliance with international standards such as RoHS, and the ability to deliver solutions tailored to the specific needs of global clients. We are not just a supplier but a partner in building lasting and high-performance display systems.

Our Services

Custom LCD Display Solutions: Tailored designs with adjustable brightness, interfaces, and optical enhancements.
Wide Temperature Optimization: Enhanced engineering for extreme climate applications with advanced thermal management.
Technical Support: Expert guidance on system integration, including LVDS/V-by-One interfaces, power sequencing, and enclosure design.
Quality Assurance: Rigorous testing for optical, mechanical, and environmental performance to ensure consistent reliability.
Global Logistics & Support: Professional supply chain solutions with responsive after-sales service for international clients.

Contact Duobond Display

Looking for a 27 inch LCD module that delivers both durability and performance? Partner with Duobond Display to secure a trusted LCD display solution for your project.

Contact us today to discuss your requirements, request a quotation, or explore our custom LCD display options.
