Professional commercial display solution provider
43 inch 3840x2160 51PIN V-by-One J Shape Curved LCD Module Back to list
Description:

►Model:DJ430R15L51V50A
►Size:43 inch
►Resolution:3840x2160 dots
►Active Area:933.3x529.4mm
►Outline Dimensional:974.2x568.4x27mm
►View Direction:89/89/89/89
►Interface:V-by-One 51PIN
►Brightness:500cd/m²

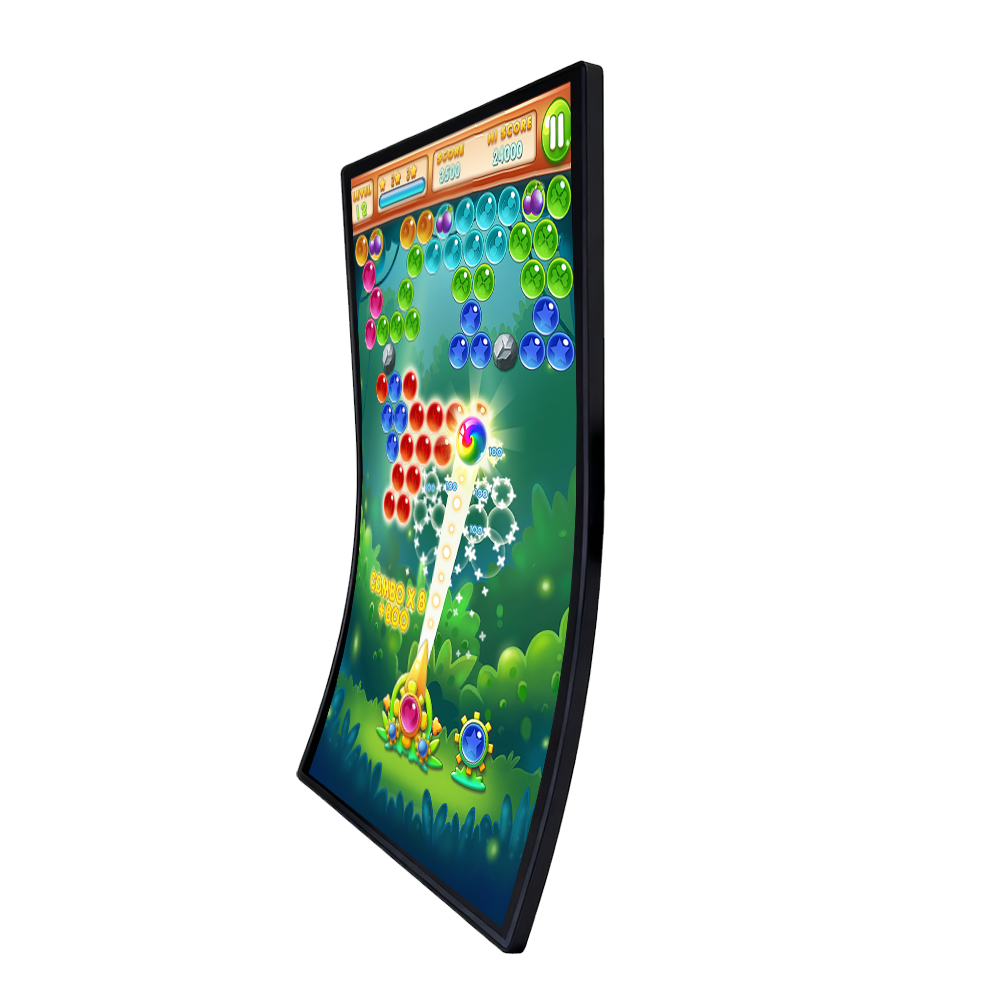

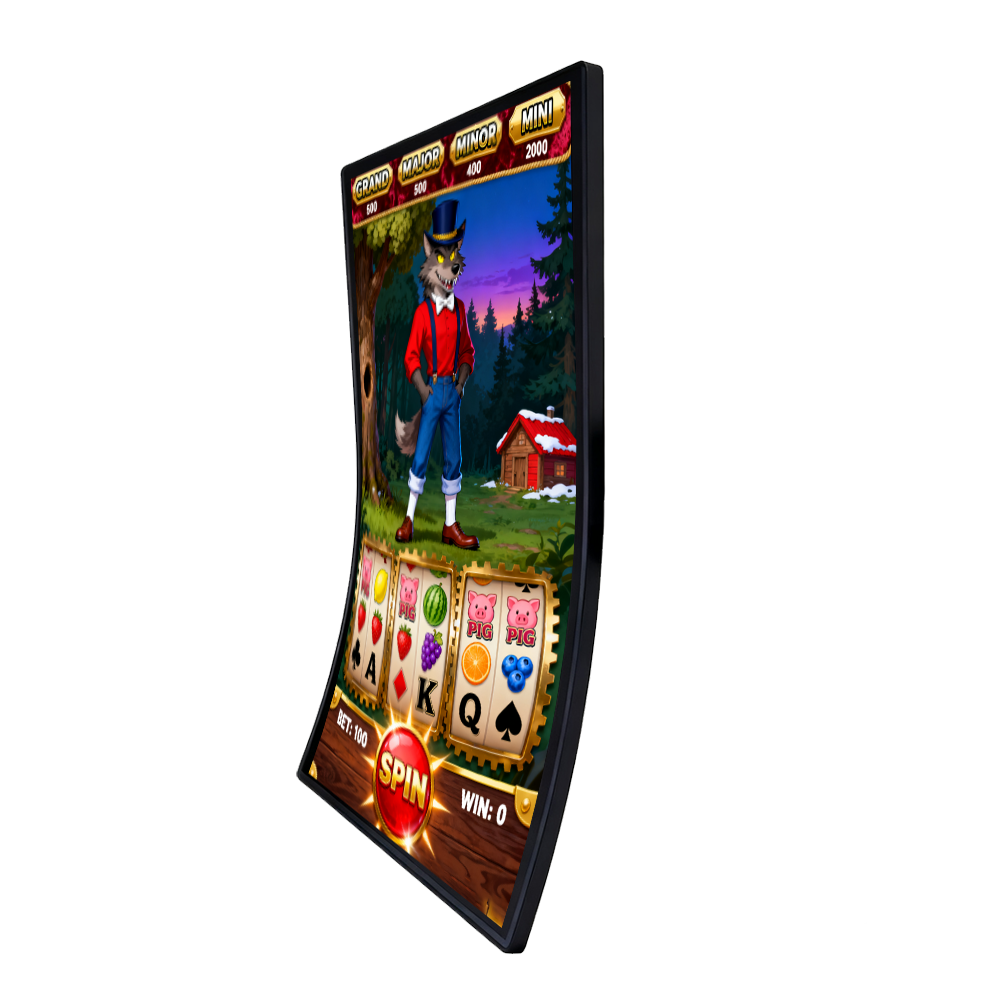

43-inch curved 4K UHD LCD module with R1500 curvature, engineered for immersive gaming and slot machine displays.

Inquire

The Curve of Command: 43-inch 4K UHD LCD Module

In the electrifying world of high-stakes casinos and competitive arcades, the display is the primary weapon in the battle for player attention. Gaming machines and slot cabinets demand a visual engine that not only delivers flawless performance but also projects an image of cutting-edge sophistication.

Enter the DJ430R15L51V50A 43-inch UHD Curved LCD Module. This product is purpose-built to redefine the player experience, combining stunning 4K resolution (3840 × 2160 pixels) with a deeply engaging curved form factor. As a premier LCD module supplier, Duobond Display offers this solution to manufacturers seeking to integrate a truly immersive, high-impact display that instantly elevates the perceived value and engagement of their products.


The Definitive Edge: Why Curved Style Matters

The strategic choice of a curved LCD module is no longer a luxury—it’s a necessity for high-end applications like modern slot machines and arcade games. Our module features a precise R1500 curvature, a geometry specifically selected for the ideal viewing distance and angle common in these setups. This design delivers a series of compelling advantages:

  • Total Immersion (The "Wrap-Around" Effect): The R1500 radius mirrors the natural field of human vision, pulling the player directly into the content. The 43-inch screen feels larger, amplifying the drama of jackpots and the thrill of fast-paced game animations. For casino gaming, immersion translates into longer, more engaging play sessions.
  • Uncompromised Visual Uniformity: On large flat panels viewed up close, edges often appear distorted or out of focus. The curved panel ensures that every pixel across the 42.51-inch active display area is equidistant from the player’s eyes, delivering uniform clarity, brightness, and color—reducing eye strain during extended gaming periods.
  • Premium Aesthetic Statement: In crowded environments, machines must attract attention immediately. The curved profile provides a futuristic, high-tech appearance, instantly elevating design and signaling premium quality over competitors still using standard flat displays.

The DJ430R15L51V50A leverages its curvature not just as a stylistic feature, but as a functional advantage that enhances player comfort and maximizes content impact.


4K Visuals and Commercial-Grade Reliability

Beyond its curved style, this 43 inch LCD module delivers performance metrics optimized for the rigorous demands of continuous commercial operation.

  • Brilliant 4K UHD Resolution: With 3840 horizontal by 2160 vertical pixels, every graphic, animation, and text detail is rendered with absolute precision. This fidelity is essential for immersive game design and complex slot interfaces.
  • Superior Color Depth and Brightness: Supporting 10-bit(D) color depth and over 1.07 billion colors, visuals are lifelike and dynamic. With a luminance of 450 cd/m², the display ensures vibrant visibility under casino lighting.
  • Wide-Angle Consistency: IPS technology enables 178° viewing angles (R/L, U/D), ensuring that content looks consistent from any perspective. This is crucial for attracting players from across the floor.
  • Durable Build: Featuring hard coating (2H) and anti-glare treatment, the module withstands continuous operation. It functions reliably across a 0°C to 50°C temperature range.
  • Energy Efficiency: At a typical 53W power consumption, the module balances strong visual output with efficient performance.

DJ430R15L51V50A Technical Specification Table

The following table provides the official parameters for the 43-inch UHD Curved LCD Module (Model: DJ430R15L51V50A), strictly based on product documentation.

Parameter Specification Unit Notes
Model Name DJ430R15L51V50A - 43" UHD Curved R1500 LCD Module
Active Screen Size (显示区域) 42.51 inches diagonal - Diagonally measured active display area
Pixel Format 3840 horiz. × 2160 vert. Pixels RGB stripe arrangement
Outline Dimension (产品尺寸 H × V × D) 974.2 × 568.4 × 27 mm Module outline dimension
Curvature Radius R1500 (+100) - -
Luminance, White (Typ) 450 cd/m² Typical value
Color Depth 10-bit(D), 1.07 Billion colors - -
Viewing Angle (CR>10) 178° (Min.) Degrees Viewing angle free
Module Power Consumption (Typ) 53 W Typical value
Module Weight (Typ) 8.6 Kg Typical value
Display Mode IPS, Transmissive, Normally Black - -
Interface V-by-One HS, 8 Lane - -

Duobond Display – Your Dedicated LCD Module Supplier

Duobond Display is a globally recognized specialist in LCD modules, with a strong focus on high-end commercial and industrial display solutions. In the competitive gaming and casino industries, product success depends on flawless quality and reliable performance. Our expertise ensures that the 43 inch curved LCD module not only meets but exceeds these demands.

At Duobond Display, quality is our foundation. Every display undergoes strict quality control and durability testing, guaranteeing long-term stability for 24/7 operation. With a global vision and strong R&D capability, we deliver displays that consistently perform under the toughest conditions.


Our Services: Complete LCD Display Solutions

We go beyond supplying display hardware—Duobond Display provides end-to-end custom LCD display solutions, ensuring optimal performance and integration for every client:

  • Custom LCD Display Engineering: Each gaming cabinet is unique. We tailor display mechanics, interfaces, and backlighting systems to fit specific product dimensions and thermal requirements. Whether minor adjustments or full custom LCD display projects, we bring your concept to production.
  • Integration Support: Our engineers provide guidance on V-by-One HS interfaces, power sequencing, and thermal management, ensuring smooth and stable system integration.
  • Reliability and Quality Assurance: Every module undergoes strict testing for extended operation, including resilience to static image retention—essential for slot machines displaying long-term fixed content.
  • Global Supply and Support: With a reliable supply chain and technical expertise, we guarantee consistent quality and on-time delivery for clients worldwide.

Conclusion

The DJ430R15L51V50A 43-inch Curved UHD LCD Module combines futuristic design, 4K UHD clarity, and robust durability to elevate gaming and slot machines into unforgettable experiences. Its immersive curvature and superior performance set a new benchmark for player engagement and reliability.

By choosing Duobond Display, you’re not just sourcing a display—you’re partnering with an expert LCD module supplier offering tailored solutions, reliable supply, and full technical support.
