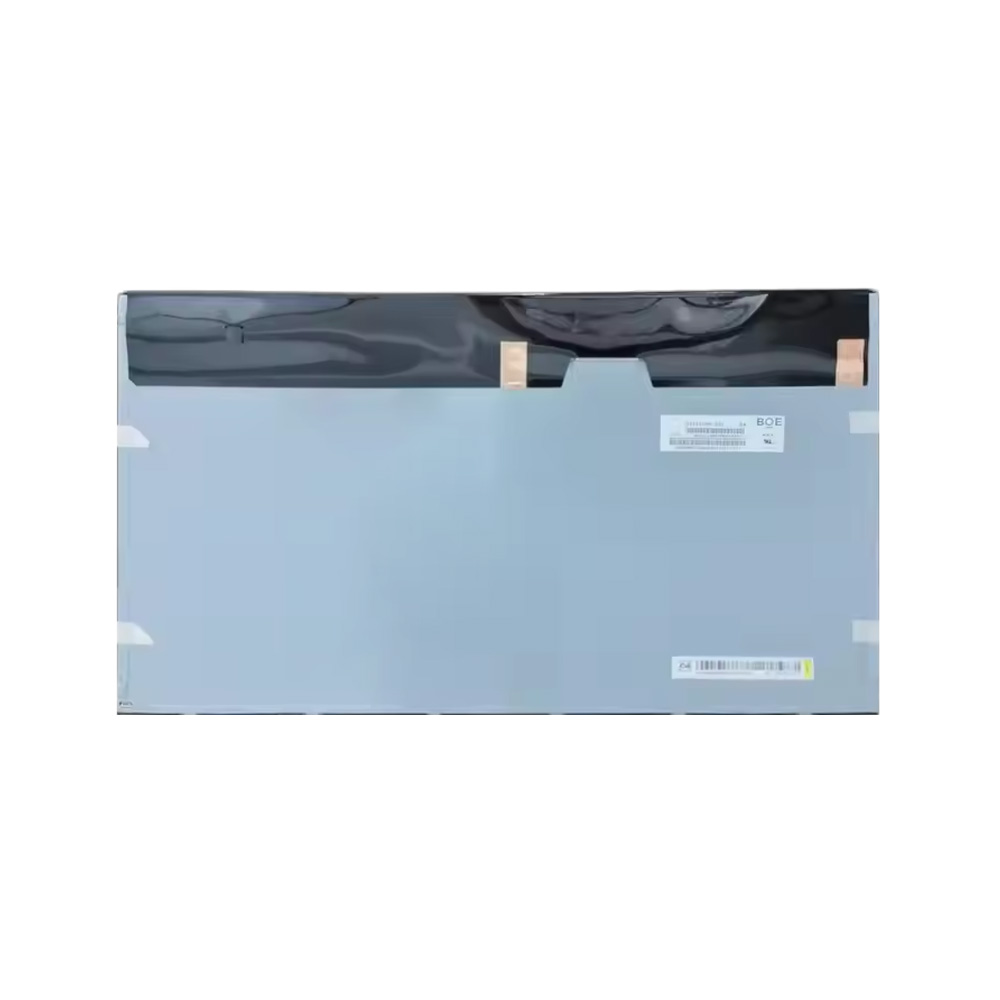

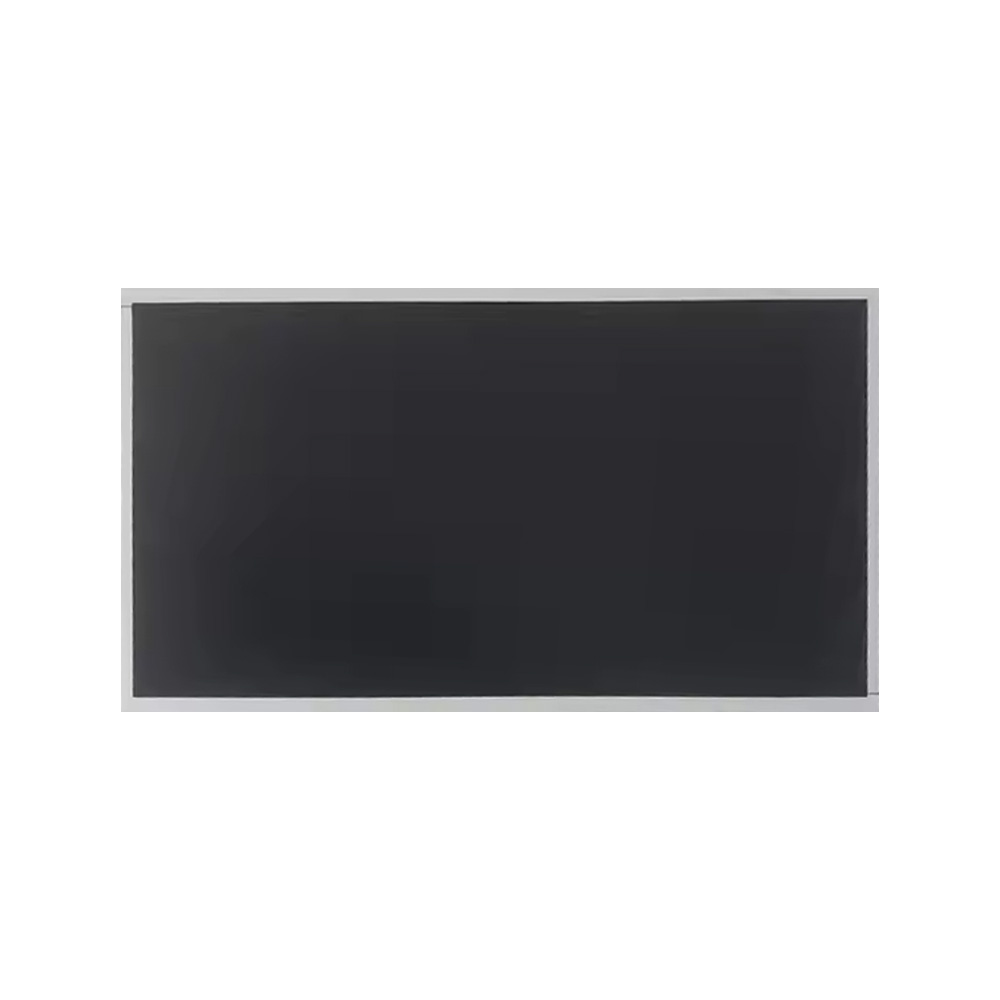

21.5 inch 1920x1080 30PIN LVDS 350nits LCD Module Back to list

Description:

►Model:DV215FHM-R01
►Size : 21.5 inch
►Resolution:1920x1080 dots
►Active Area:476.64(H)×268.11(V)mm
►Module size:495.6(W)×292.2(H)×11.2(D)mm
►Viewing Angle: 89/89/89/89
►Interface:30PIN LVDS
►Brightness (cd/m²):350
►Operating Temperature:-20~+85℃
The DV215FHM-R01 is a 21.5 inch Full HD LCD module with wide temperature operation and high brightness, perfect for industrial equipment and outdoor advertising machines. Offered by Duobond Display, your trusted LCD module supplier.

Inquire

The Ultimate 21.5-Inch LCD Module for Extreme Environments: High Brightness and Wide Temperature LCD Module Solutions

Introduction: Next-Generation Display Reliability

In today’s industrial and commercial landscape, displays are often the frontline of communication. Yet, standard panels fail quickly when exposed to temperature extremes, constant operation, or direct sunlight. The DV215FHM-R01, a high-performance 21.5 inch LCD module, is designed to meet these challenges head-on. Delivering 1920×1080 Full HD resolution, it combines brilliant image clarity with rugged durability, making it an ideal solution for industrial equipment and outdoor advertising machines.

Its defining characteristics—wide temperature operation and high brightness performance—ensure that it remains reliable in the harshest conditions. From factory automation terminals to public kiosks, the DV215FHM-R01 stands as a trusted foundation for demanding projects.

Product Specifications: DV215FHM-R01

The following table outlines the verified specifications of the 21.5-inch wide temperature, high brightness LCD module, including its active display area and overall product dimensions for seamless integration.

Parameter	Specification	Unit	Remarks
Model Number	DV215FHM-R01	-	-
Display Size	21.5 inch	inch	Diagonal
Resolution	1920(H) × 1080(V)	pixels	Full HD
Active Area	476.64(H) × 268.11(V)	mm	H × V
Dimensional Outline	495.6(H) × 292.2(V) × 11.2(D) typ.	mm	H × V × D
Pixel Pitch	0.24825(H) × 0.24825(V)	mm	-
Display Colors	16.7M	colors	6-bit + Hi-FRC
Display Mode	Normally Black	-	High Contrast
Typical Luminance	350	cd/m²	High Brightness
Operating Temperature	-20 to +85	°C	Wide Temperature
Storage Temperature	-30 to +80	°C	Extended Range

Key Features

1. Wide Temperature Operation

The DV215FHM-R01 is engineered to deliver uninterrupted performance in environments ranging from -20°C to +85°C. This wide thermal tolerance is vital for:

Industrial control panels in unheated warehouses.
Agricultural equipment exposed to freezing winters.
Outdoor kiosks and digital signage in desert-like heat.

The advanced liquid crystal technology and reinforced components minimize thermal shock, ensuring reduced downtime and consistent performance.

2. High Brightness for Sunlight Visibility

With a typical luminance of 350 cd/m², this module ensures crystal-clear readability under direct sunlight or high ambient light. The combination of its efficient backlight system and contrast-enhancing “Normally Black” mode guarantees superior visibility. For outdoor advertising machines, this means marketing content and public information remain impactful and legible at all times.

3. Full HD Visuals with True Color

Featuring 1920×1080 resolution and support for 16.7M colors, the DV215FHM-R01 ensures sharp, vibrant, and accurate image reproduction. This level of clarity is indispensable for industrial schematics, transportation data, or outdoor promotions.

Application Scenarios

Industrial Equipment

Factory Automation & HMIs: Reliable visualization in non-climate-controlled facilities.
Transportation Systems: Rugged integration into vehicle-mounted terminals and logistics systems.
Test & Measurement Devices: Stable performance in field-deployed instruments requiring precise visuals.

Outdoor Advertising & Digital Signage

Public Information Kiosks: Displaying schedules, maps, or interactive wayfinding in all weather.
Outdoor Advertising Machines: Delivering vibrant, high-contrast advertising content under bright sunlight.
Security & Monitoring: Embedded into outdoor surveillance and monitoring systems for consistent visibility.

About Duobond Display

Duobond Display is a trusted LCD module supplier specializing in high-performance, high-reliability displays for industrial and commercial applications. With extensive expertise in wide temperature LCD modules and high brightness solutions, we deliver products that excel in the most demanding environments.

Our reputation is built on precision engineering, strict quality control, and a commitment to long-term performance. Every module undergoes reliability testing, including vibration, thermal shock, and extended temperature storage trials, ensuring compliance with global standards such as RoHS.

Our Services: Comprehensive LCD Display Solutions

Custom LCD Display Engineering
Tailored modifications to meet specific brightness, optical, or mechanical needs. Options include anti-glare coatings, custom backlight adjustments, and specialized housing integration.
Complete LCD Display Solution
From interface consulting (LVDS or other protocols) to backlight driver design, we provide a full-stack solution to minimize development cycles.
Reliability Testing Support
Guidance and documentation on operational precautions, including preventing image sticking, thermal management, and optimized power sequencing.
Global Logistics & Support
With international experience, Duobond Display provides detailed packaging, storage, and shipping solutions to ensure modules arrive in perfect condition.

Contact Duobond Display

Looking for a durable 21.5 inch LCD module for your next project? Whether you need a custom LCD display or a turnkey LCD display solution, Duobond Display is your ideal partner.Contact us today to discuss your requirements and request a quotation:
