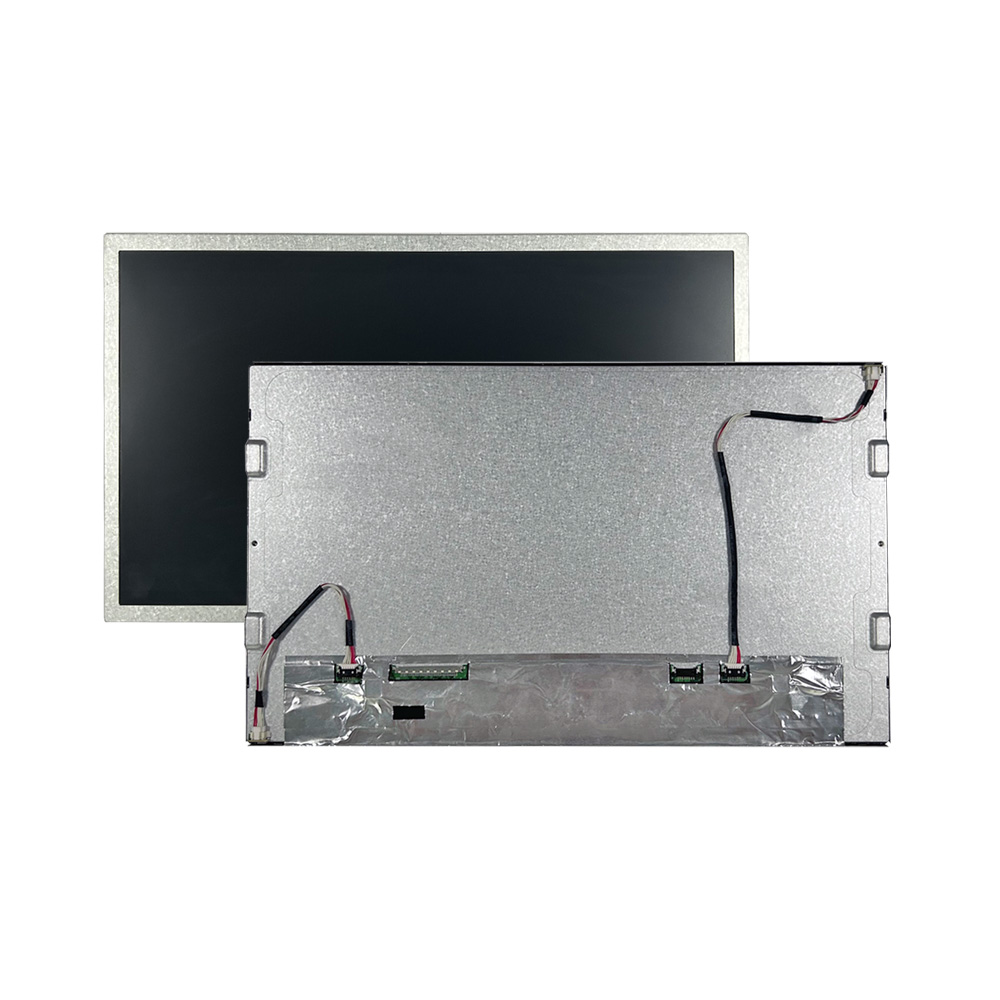

Sun-Defying 15.6-Inch LCD Module for Outdoor Advertising

Deploying outdoor advertising displays presents unique challenges: extreme temperatures, direct sunlight, and continuous operation. The AS156ME02 15.6-inch LCD module is specifically engineered to meet these challenges, making it the optimal choice for digital kiosks, public information displays, and compact outdoor advertising screens. This wide temperature LCD module provides robust performance, ensuring every advertisement is highly visible regardless of environmental conditions.

AS156ME02 Technical Specifications

This 15.6-inch LCD module combines Full HD clarity with high brightness and wide temperature tolerance, making it perfect for outdoor advertising machine applications.

Dual-Focus Technology: Wide Temperature and High Brightness

1. Wide Temperature Resilience (−40°C to +85°C)

Outdoor displays are often exposed to extreme heat or cold, which can compromise performance. The AS156ME02 is rated for an operational temperature range of −40°C to +85°C (glass surface) and a storage temperature range of −40°C to +85°C (ambient). This ensures stable operation in any climate, from Arctic conditions to desert heat, minimizing maintenance and maximizing uptime.

2. High Brightness for Sunlight Visibility (1000 cd/m²)

For effective outdoor advertising, visibility in bright sunlight is crucial. The AS156ME02 delivers a typical luminance of 1000 cd/m², with a guaranteed minimum of 800 cd/m². Its Anti-Glare (AG+3H) surface reduces reflections, ensuring consistent readability. Supporting 16.7M colors and 72% NTSC, this module maintains vivid, high-contrast visuals that capture viewer attention at all times of day.

Optimized Electronics and Integration

Power and Efficiency

• Logic supply voltage: 3.3V (typical)

• LED backlight: 12V

• Maximum power consumption: 27.8W
  This power-efficient design facilitates thermal management within compact outdoor enclosures, ensuring long-term, reliable operation.

Interface and Control

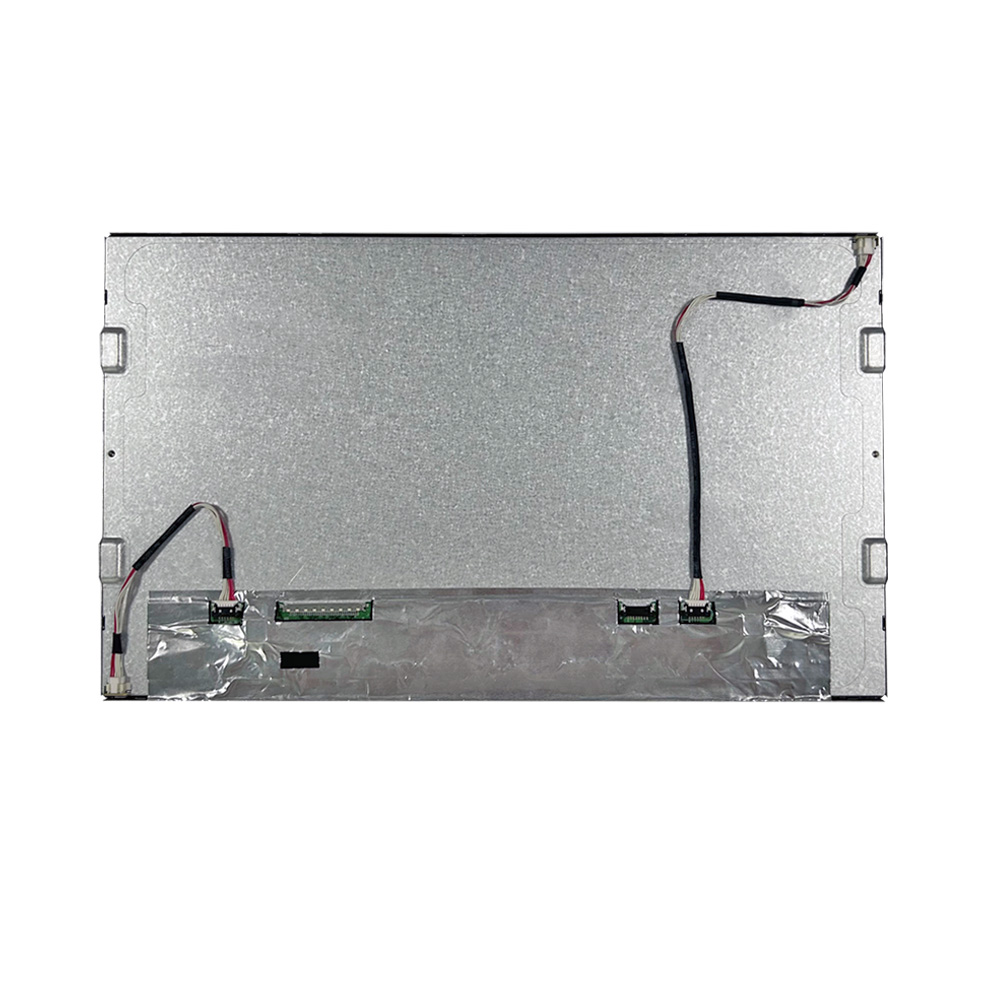

• LVDS interface with 30-pin connector for high-speed data transmission

• Dedicated control pins including VLED_EN for backlight on/off and VPWM_EN for dimming

• Backlight life: 50,000 hours for continuous operation

Optical and Response Performance

• Viewing angles: 85° horizontal and vertical

• Maximum response time: 35ms (Rising + Falling)
  These specifications ensure sharp, clear, and dynamic image quality for video content, animations, and promotional graphics.

Application in Outdoor Advertising Machines

The AS156ME02 excels in real-world outdoor advertising scenarios:

• Digital Kiosks & Public Displays: Reliable, visible performance in direct sunlight and extreme temperatures

• Compact Outdoor Advertising Screens: Supports vivid Full HD content for smaller signage applications

• Promotional Video Displays: Fast response time ensures smooth video playback without motion blur

Company Profile: Your Trusted LCD Module Supplier

[Your Company Name] is a leading LCD module supplier, specializing in custom LCD displays for demanding environments. Our focus is on delivering reliable, high-performance display solutions, including wide temperature LCD modules, tailored for applications like outdoor advertising machines. We ensure all products comply with global standards, including RoHS, and are manufactured to withstand extreme operational and storage conditions.

Comprehensive Services for Custom LCD Display Solutions

We provide end-to-end support for integrating the AS156ME02 into your outdoor advertising systems:

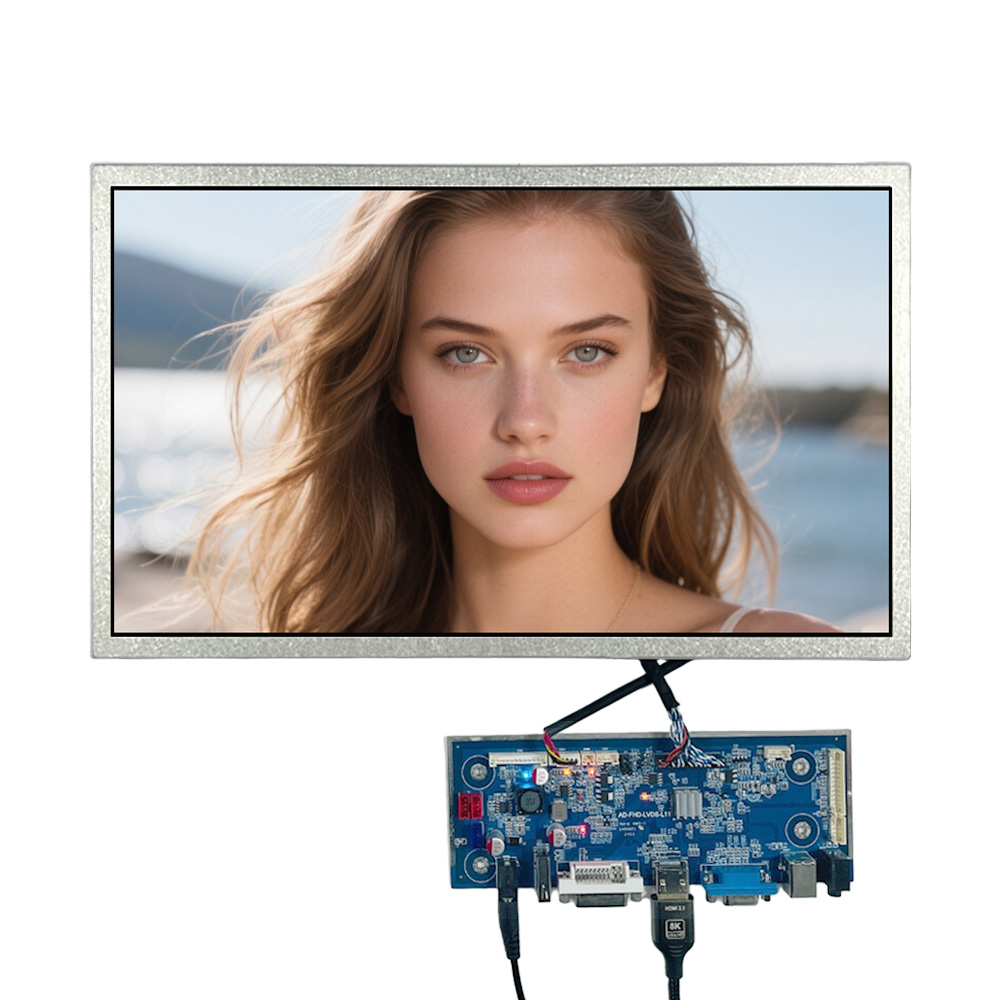

• Technical Consulting: Guidance on housing design, LVDS controller board selection, and thermal management for compact enclosures

• Reliability Assurance: Testing across operational temperatures from −40°C to +85°C, ensuring consistent optical and mechanical performance

• Logistics & Handling Support: Recommendations for storage and handling to prevent damage during transport or assembly

• Optical Calibration: Assistance with backlight fine-tuning and dimming optimization for energy efficiency and consistent outdoor visibility

Partner with [Your Company Name] to integrate the AS156ME02 15.6-inch wide temperature high brightness LCD module, ensuring your outdoor advertising campaigns are visible, reliable, and unstoppable.
