32 Inch 1920×1080 51PIN LVDS 500nits LCD Module Back to list

Description:

►Model:DBT320BHN51L050A
►Size:32inch
►Resolution:1920x1080 dots
►Active Area:698.4x392.85mm
►Outline Dimension:725.2x422.7x14.5mm
►View Direction:89/89/89/89
►Interface:LVDS 51PIN
►Brightness:500cd/m²
31.5-inch Full HD LCD module with 500 nits brightness and ADS wide viewing angles.Built for reliability with industrial-grade stability and low power consumption.Custom driver boards, frames, and touchscreen integration available.

Inquire

Unlocking Commercial Excellence: The 31.5-Inch 1920x1080 Large LCD Display Module

Introduction: A New Benchmark for Commercial Displays

The contemporary commercial landscape demands visual communication that is both reliable and impactful. In environments ranging from public information terminals to dynamic retail installations, the display is the crucial link between your business and its audience. System integrators and product developers require components that guarantee longevity, stability, and superior visual performance under demanding operational conditions.

Our 31.51-inch (commonly marketed as 32-inch) Full HD (1920x1080) large LCD display module, model DBT320BHN51L050A, is meticulously engineered to meet these challenges. It is the ideal solution for applications that require both compact integration and a commanding visual presence.

Exact Technical Specifications: DBT320BHN51L050A

Parameter	Specification	Unit	Notes
Model Name	DBT320BHN51L050A	-	-
Display Size (Diagonal)	31.51 Inches	-	-
Resolution (H x V)	1920×1080 (Full HD)	Pixels	-
Display Area (Active Area)	698.4 (H) × 392.85 (V)	mm	From spec
Luminance of White (Typ.)	500	nit	-
Contrast Ratio (Typ.)	1200	-	-
Power Consumption (Typ.)	4.0	Watt	With TCON
Operating Temperature (Min/Max)	0 to +50	°C	-
Storage Temperature (Min/Max)	−20 to +60	°C	-
Product Dimensions (Outline)	725.2 (H) × 422.7 (V) × 14.5 (D) (EST.)	mm	Verify spec

Important: Product dimensions are estimated and should be confirmed from the official specification sheet before mass production.

The Performance Edge: Stability and Clarity in Every Module

The DBT320BHN51L050A is more than just a screen—it is an industrial-grade visual engine.

High Brightness & Contrast: 500 nits brightness with a 1200:1 contrast ratio ensures sharp, vibrant visuals even in bright environments.
ADS Technology: Provides wide viewing angles with minimal color shift, ideal for public-facing applications.
Wide Operating Range: Stable performance from 0°C to +50°C, ensuring resilience in fluctuating climates.
Power Efficiency: Consumes just 4.0W typically, reducing heat and energy costs for large-scale deployments.

Comprehensive Custom Solutions

We specialize in full-stack customization that goes beyond the bare LCD module.

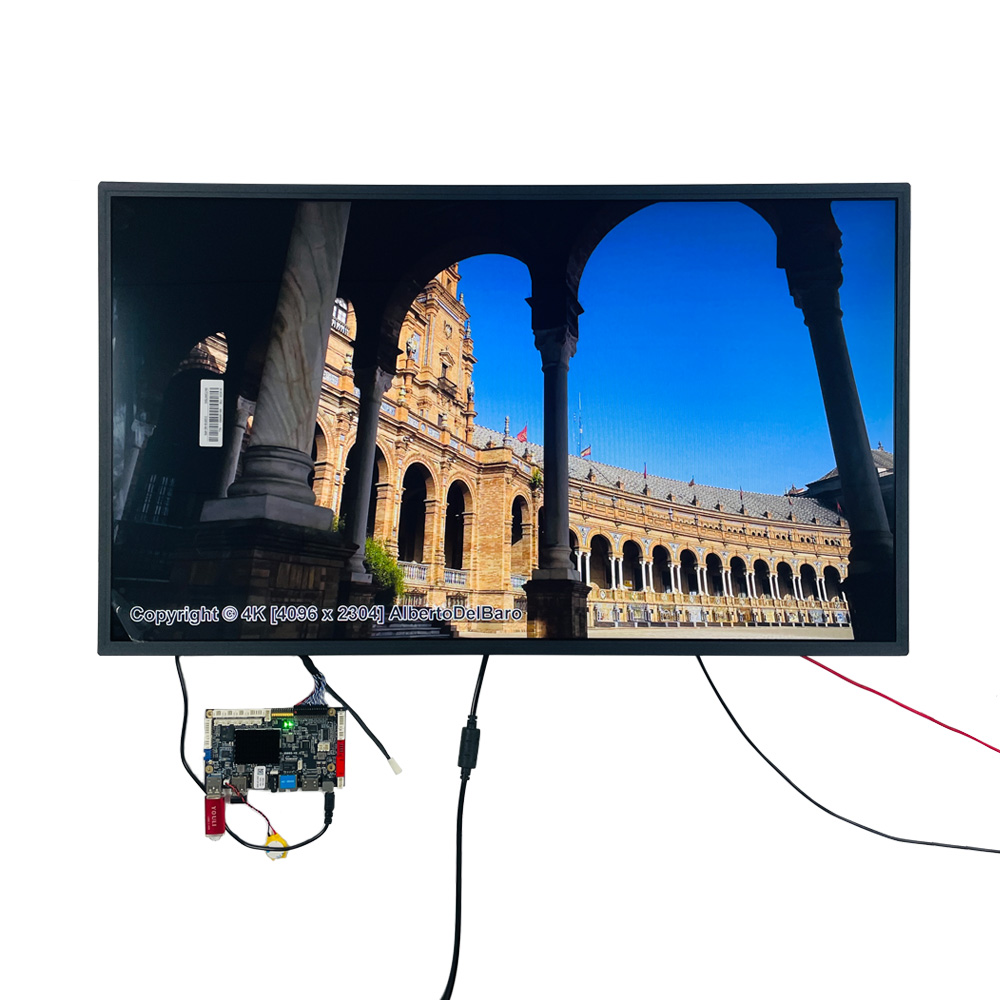

Driver Board Integration: Custom-configured boards with HDMI, DP, or LVDS interface support.
Framing & Enclosures: Precision-engineered frames and mounting structures for seamless installation.
Touchscreen Options: PCAP or resistive touch integration with optional AG/AR protective coatings.
Turnkey Solutions: Pre-assembled Screen + Driver Board + Frame systems, fully tested for compatibility.

Versatile Applications

The DBT320BHN51L050A is ideal for:

Digital Signage & Advertising – retail, corporate, and transit areas.
Interactive Kiosks & POS – self-service terminals and ticketing machines.
Industrial HMI Panels – stable, reliable performance for mission-critical interfaces.
Medical & Healthcare Displays – clear and consistent information output.

Your Trusted LCD Module Manufacturer

We are a specialized LCD module manufacturer delivering industrial and commercial TFT-LCD solutions. From raw LCD cells to integrated display systems, our products are built with strict quality standards. We provide:

Engineering consultation & design guidance.
Rigorous reliability testing for all integrated solutions.
Flexible logistics and supply chain support.
Dedicated after-sales technical support.

Partner with us for the DBT320BHN51L050A and leverage our expertise to accelerate your next commercial display project.
